Model No.: XN20
Applicable Industry: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food &Amp; Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, Advertising Company
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, Colombia, Algeria, Sri Lanka, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Morocco
Place Of Origin: China
Status: New
Exercise: Crawler Excavator
Operating Weight: 2ton
Bucket Capacity: Other
Warranty Period: 1 Year
Engine Brand: Kubota
Unique Selling Point: High Digging Power
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Engine, Motor, Pump
Engine: Kubota D902 11.8kw
Max. Digging Depth: 2150mm
Max. Diiging Height: 3275mm
Max. Dumping Height: 2310
Chassis Width: 990-1240mm
Track Dimension: 1590x230x360mm
Whole Dimension: 3400x990x2380mm
Boom Swing-left: 390mm
Boom Swing-right: 510mm
Pressure / Flow Rate: 22Mpa / 48 L/min
Company Overview
Product Overview
Net weight :1880kg ; Operation weight / gross weight :2000kg
EPA4 /Euro V Kubota Engine : D902 ,11.8kw ,orginal imported from Japan,three cylinders,water cooler
Max. digging depth:2150 ; Max.digging height: 3275mm
1.Rhinoceros XN20 EXCAVATORS specification:
Overall dimension ( LxWxH) | Unit (mm) | ||
a | Wheelbase | 1230 | |
b | Total length of track | 1590 | |
c | Platform ground clearance | 437 | |
d | Counterweight turning radius | 790 | |
e | Chassis width | 990(1240) | |
f | Track width | 230 | |
g | Track height | 360 | |
h | Length | 3400 | |
i | Height (From seat to ground) | 1660 | |
j | Height (From seat to ground) | 2380 | |
SPECIFICATION | Unit | ||
Operating Weight | 1900 kg | ||
bucket capacity | 0.045m³ | ||
Working device form | backhoe | ||
engine | Model | Yanmar 3TNV70/3TNV74F | |
Displacement | 0.854L | ||
Rated power | 10.3kw/11.2 kw | ||
Maximum torque | 51.9N.m/1600 r/min | ||
Speed/Digging force | Max.travel speed | 3.4/1.9 km/h | |
swing speed | 10.5rpm | ||
Max. Gradeability | 30°(58%) | ||
Bucket digging force | 13.5KN | ||
Bucket arm digging force | 10.1KN | ||
Maximum traction | 17.5KN | ||
Ground specific pressure | 32.8Kpa | ||
Track material | Rubber/Steel track | ||
Type of track tension device | Butter oil cylinder | ||
Hydraulic and liquid capacity | Pump type | Piston pump | |
Working pressure | 22Mpa | ||
Flow rate | 48L/min | ||
Hydraulic oil tank capacity | 15.3L | ||
Engine fuel tank capacity | 2.8(1.3)L | ||
Fuel tank capacity | 19L |

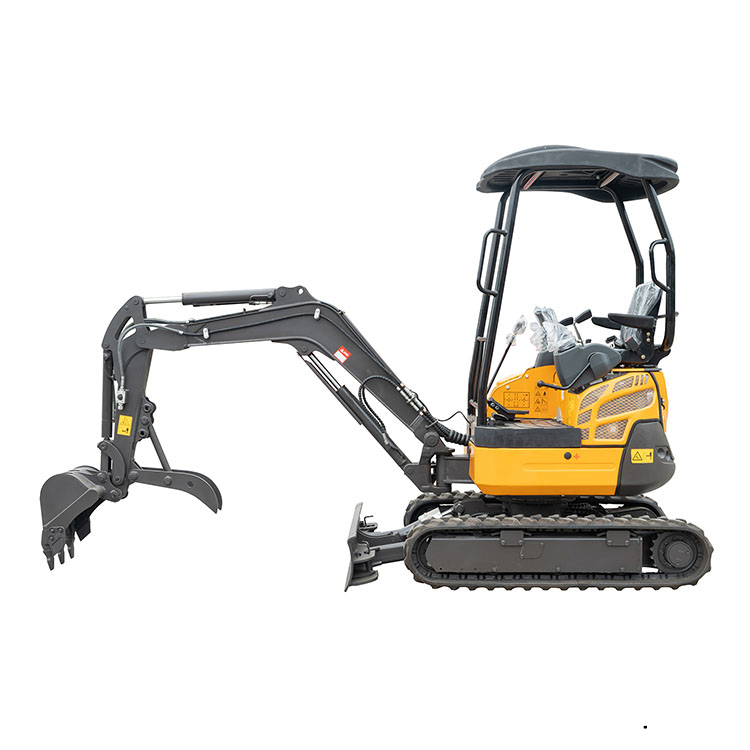

2. Rhinoceros Crawler Excavator display:
3. Option Accessories for MINI DIGGERS XN20:
4. Mini Crawler Excavator Package & shipment:
4-5 units:
Will be in 20ft container,None package ,but will fix well.
10-12 units :
5. Rhinoceros Mini Excavator series models :Will be in 40HQ container
6. Rhinoceros 6-9 ton excavator models :
FAQ
Our Team
Our Service
CERTIFICATE
https://www.linkedin.com/in/jessie-du~rhinoceros-excavator-15bb22a2/
Product Categories : Mini Excavator > 2 Ton Mini Excavator
Shandong KEN STONE Heavy Machinery Co.,Ltd, right here we are producer with the theme of manufacturing engineering machinery. The organisation used to be based in 1995, and its manufacturing base is placed in the west of Liaocheng city, Shandong province, with greater than 600 employees. The manufacturer identify "RHINOCEROS" is honored as Chinese familiar trademark.
Main merchandise covers crawler excavators, wheel excavators, backhoe loaders, and mini excavators ,mini dumper ,skid steer loader,wheel loader which are very warm promoting all over the world, The mannequin X9 with each wheels and tracks, are our patented machine. Annual income 6000 gadgets excavators, we take section about ten percentage of the whole Chinese export excavators.
The corporation receives ISO administration gadget certification, important merchandise can meet Euro 5 emission general and EPA four emission.
We are searching out sellers agent international, our factory organisation produce the excavator ,mini dumper, skid steer loader. if you have excavator business or would like expand excavator as new business, please kindly contact us, we have the power and enjoy to make each of us with suitable profit.
